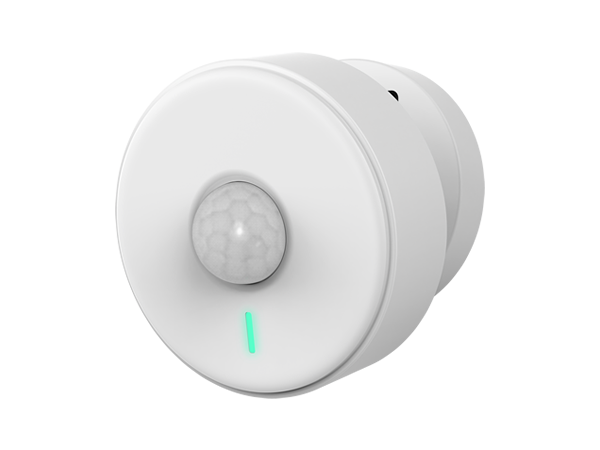

Human Presence Detector

Human presence detector integrates three types of sensors,24GHz millimeter wave radar,PIR sensor and Light Sensor, The detector uses double identification technology (PIR + millimeter wave radar) to avoid false alarms. Millimeter wave radar technology allows precise detection of movement in space, including the presence of people at rest. The integrated light sensor provides more flexibility and fun when creating lighting automation. By using millimeter wave radar technology, this type of capture does not require image information like a security camera. No information is collected about your indoor space, no movement paths are created, which maximally protects the privacy of users.

Specification

Model number: HHP-J903

Communication: IEEE 802.11b/g/n

Sensor: 24G millimeter-wave radar

             PIR sensor

             Light sensor

Illumination: 0~10000lux

Button: 1

LED: 1

Detection Angle: Horizontal 120 °, vertical 80 °

Detection Range: Dynamic distance of 10m, static distance of 5m

Power input: 5V1A type-C

Operating Temperature: -10℃~+50℃

Operating Humidity: Max 95% RH

Indoor/outdoor: indoor

Dimension: φ64*22.6mm


Features


• Wi-Fi connection / No hub needed


• Ultra-High Precision Detection with More Privacy

• Support light sensor

• Advanced Sensing and Instant Alert

• Flexible Installation and Extensive Detection Range
