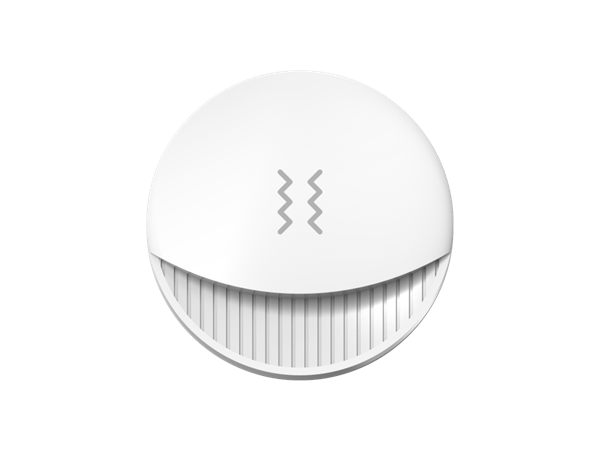

Vibration Sensor

The vibration Sensor is a wireless and battery-powered sensor to sense and detect physical shock, sudden impact or break on glass. It can be used on variety glass types on windows or doors to guard your house.

An ultra low-power high performance three axes linear accelerometer (g-sensor) is embedded in the smart shock sensor, which can precisely detect and analyze shocks but ignore background vibration (false alarm).

It requires smart home Hub or compatible device with smart home Hub functionality and smart home App. Free smart home app requires Android (10.0 or later) or iOS (13.0 or later).


Specification

Model number: HSD-9900

Communication: Zigbee3.0

Movement sensor:  3 axis accelerometer, Digital Motion Processing. Accelerometer full range 2g, 4g and 8g. Sensitivity of Wake on Motion configurable

Button: 1 x Reset Button

             Insert a pin into the hole and hold for 5 seconds to initiate factory reset process

LED: 1 x Status LED

Battery:  CR2032

Estimated battery life:  2 years （up to use frequency）

Setting features: Movement detection, Deep sleep, Wake on Motion/Wake on Button press, Adjustable sensitivity settings, Reset Device.

Dimension:  φ40×12.62 mm

Features

• Can protect variety types of glass including plate, tempered, wired and laminated


• Detection of gross attacks, strong shocks or break on glass, and  continual tapping


• Adjustable sensitivity settings


• High immunity to background vibrations which can cause false alarms

• Quick and easy installation by using adhesive tape and mounting on to glass
