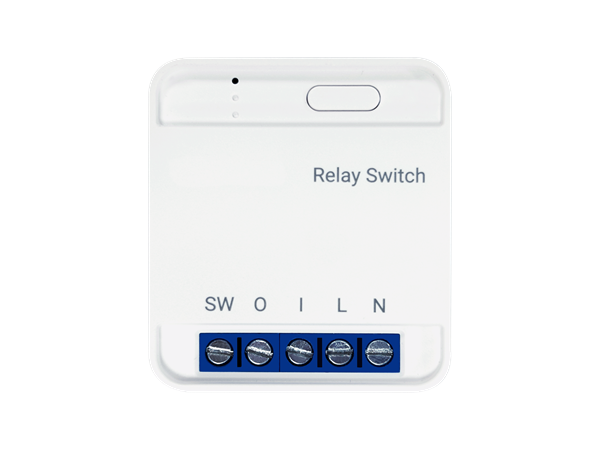

Relay Switch

The relay switch can control the circuit on and off, and can remotely and intelligently control the device on and off, mainly for controlling the switch of the circuit. In addition, Relay also has a power statistics function, real-time monitoring of equipment electricity consumption, to avoid unnecessary energy waste.

Specification

Model number: HSS-J933

Communication: IEEE 802.11b/g/n

Input Power: 110-240V~,50/60Hz

Output Power: 110-240V~,50/60Hz

Max Load Current: AC 15A

Power Meter: Support

Button: 1 x reset

LED: 1

Interface: SW、O、I、L、N

Dimension: 42 x 38 x 17mm

Operating Temperature: -10℃~+50℃

Operating Humidity: Max 95% RH

Indoor/outdoor: Indoor

Features

● Wi-Fi connection / No hub needed

● Compact and Versatile Smart Relay for Indoor Use

● Home Lighting Automation & Appliance Control

● Transform Non-Smart Outlets into Smart Ones

● Energy Monitoring for Smarter Energy Management

● Small size, suitable for intelligent transformation of traditional switches
